Brand: Alfa Laval

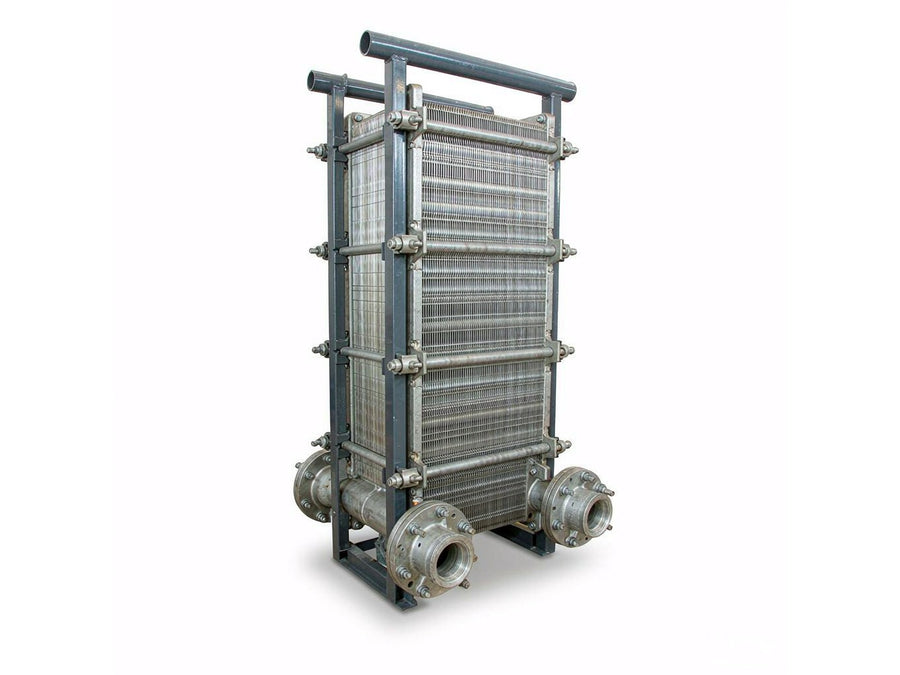

Alfa Laval M6 Gasketed Plate Heat Exchanger
HeatExchangeralfa-lavalcoolinggasketedheat-exchangerisolation-loopplate
Project-based pricing — no public retail price.
Engineering quote in 24–48 h
Tell us the quantity, site power/cooling context and delivery country — our supplier desk returns a spec'd offer, not a generic price list.
Overview
Mid-size gasketed plate-and-frame heat exchanger for utility heating and cooling and for secondary-loop isolation.
- Liquid flow rate up to 16 kg/s (250 gpm), depending on media and permitted pressure drop
- Maximum heat transfer surface 390 m2 (4,200 sq ft) per unit
- Frame types FM, FG and FD; mechanical design pressure 1.0 MPa (FM) up to 2.5 MPa (FD)
- Plates in AISI 316/304 stainless steel or titanium; gaskets in nitrile, EPDM or HeatSeal F
- PED, ASME and pvcALS pressure vessel codes; 50 mm (2 in) threaded, welded or flanged connections
