Brand: Sondex (Danfoss)

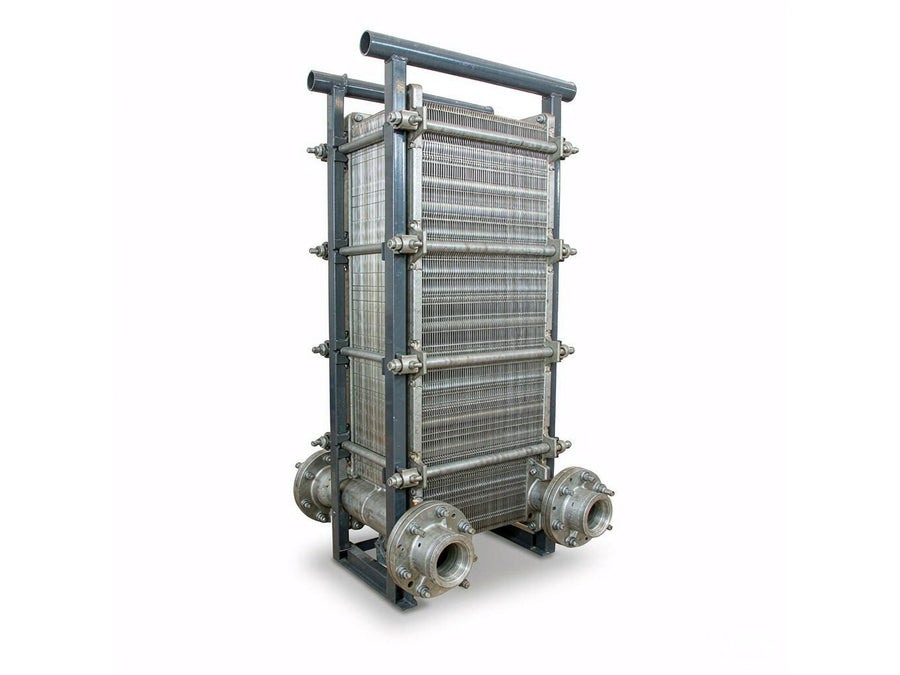

Sondex S-Series Gasketed Plate Heat Exchanger
HeatExchangercoolingdanfossgasketedheat-exchangerhvacplatesondex
Project-based pricing — no public retail price.
Engineering quote in 24–48 h
Tell us the quantity, site power/cooling context and delivery country — our supplier desk returns a spec'd offer, not a generic price list.
Overview
HVAC and industrial gasketed plate heat exchanger, custom-built to the duty from one of the largest plate portfolios in the market.
- S7A/S14A/S20A cover duties up to 50 m3/h in a single pass; S21/22/S36/S47/S64 reach 150 m3/h
- S81/S121/S188/S251 with DN300 (12 in) connections for large flows
- Maximum working pressure 10 (on request), 16 or 25 bar; operating temperature -10 C to 180 C
- Plates in AISI 316L, 304, SMO 254, Hastelloy C276 or titanium Gr.1, 0.4 to 0.6 mm thick
- SonderLock glueless gaskets; construction to EN13445 (PED 2014/68/EU) and ASME VIII Div. 1
