Brand: Trane

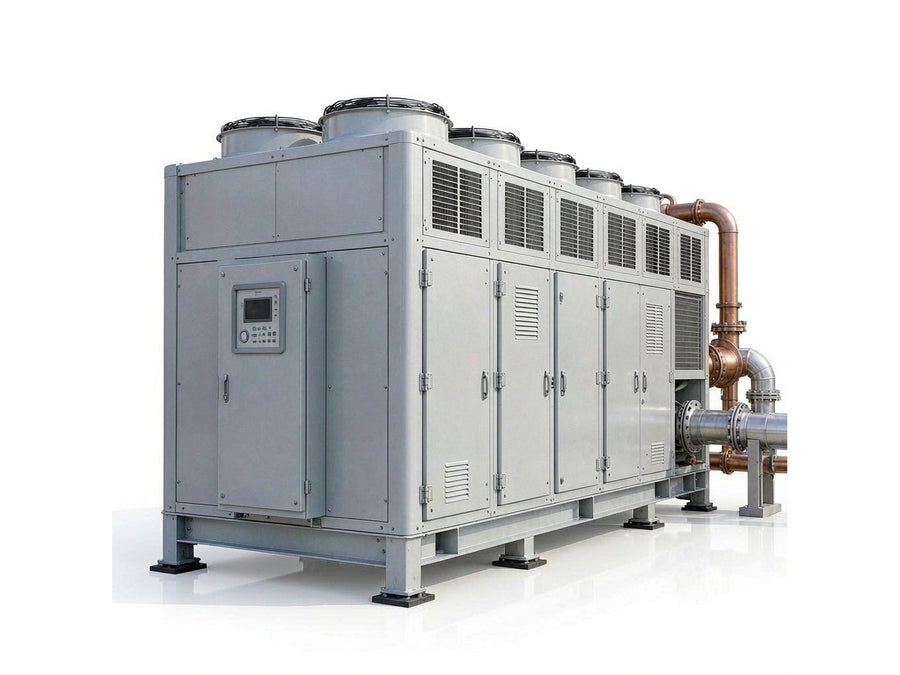

Trane Sintesis eXcellent GVAF Air-Cooled Maglev Chiller
Chillerair-cooledchillercoolingdata-centermagnetic-bearingoil-freetrane
Project-based pricing — no public retail price.
Engineering quote in 24–48 h
Tell us the quantity, site power/cooling context and delivery country — our supplier desk returns a spec'd offer, not a generic price list.
Overview
Air-cooled magnetic-bearing centrifugal chiller with near-zero GWP refrigerant and a dedicated data centre version.
- High speed oil-free centrifugal compressors on magnetic bearings with integrated variable frequency drive and soft starter module
- Cooling capacity 400 to 1,600 kW, with a data centre version available up to 1,900 kW
- R-1234ze with a GWP below 1, or R-513A and R-134a depending on region and efficiency tier
- SEER up to 6.55, more than 35 percent above the ErP 2021 threshold; full load ambient up to +46 C
- Trane CHIL flooded evaporator and microchannel condenser coils with EC fans; Symbio 800 controller and TD7 touchscreen
- Three acoustic packages (LN, NNSB, XLN); data centre options include automatic transfer switch, rapid restart, UPS-fed controls and free cooling
