Brand: Zhiting

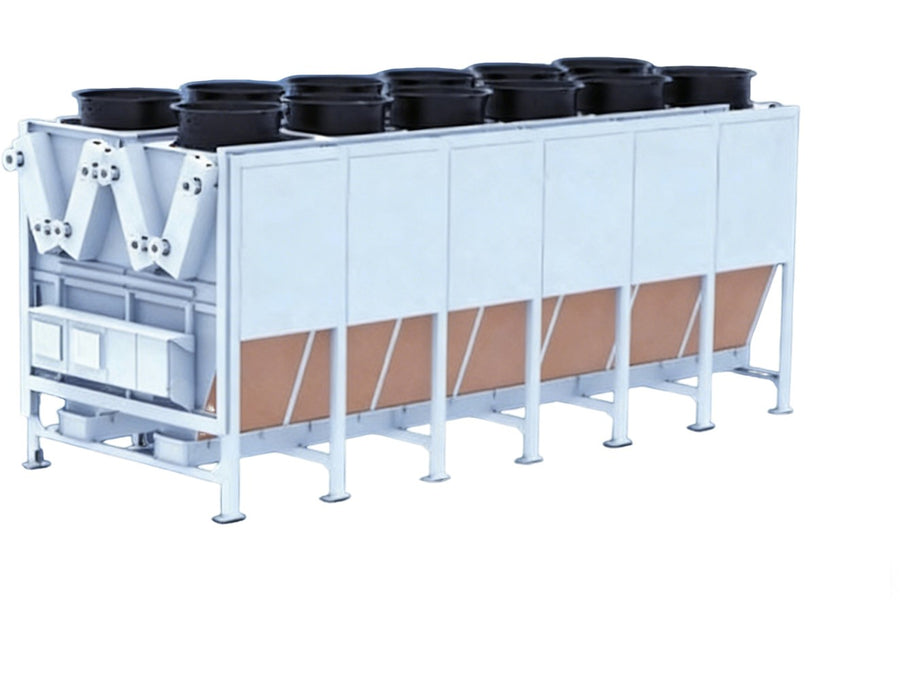

Zhiting Adiabatic Dry Cooler (500–1200 kW)
DryCooleradiabaticdry-coolerheat-rejectionzhiting
Project-based pricing — no public retail price.
Engineering quote in 24–48 h
Tell us the quantity, site power/cooling context and delivery country — our supplier desk returns a spec'd offer, not a generic price list.
Overview
ZT-DC adiabatic dry cooler transfers condenser heat to ambient with up to 90% less water than cooling towers, sized 500 kW to 1200 kW per unit.
- Five models ZT-DC500 to ZT-DC1200 covering 500–1200 kW heat rejection
- Cooling medium 30% ethylene glycol; inlet/outlet 40/35 °C at 28 °C design ambient
- 8 to 16 fans with airflow up to 400,000 m³/h
- Operating range -40 °C to +45 °C; rated power input 22–44 kW
- Dimensions from 6000×2800×3000 mm (DC500) to 12000×2800×3000 mm (DC1200)
