Brand: Zhiting

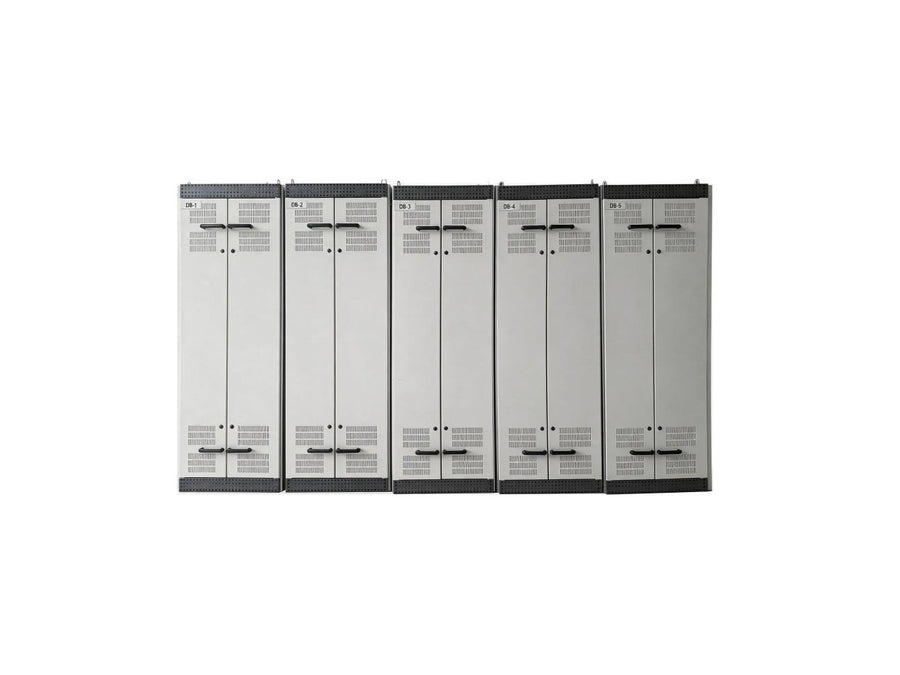

Zhiting Blockset Switchgear Cabinet (1600 / 3150 / 4000 A)
Buswaybusbarcabinetlvpowerswitchgearzhiting
Project-based pricing — no public retail price.
Engineering quote in 24–48 h
Tell us the quantity, site power/cooling context and delivery country — our supplier desk returns a spec'd offer, not a generic price list.
Overview
Zhiting blockset-type LV switchgear for high-current data center incoming and feeder service, built around 5×(100×5 mm) copper busbar.
- Three frame ratings: 1600 A, 3150 A and 4000 A
- Horizontal busbar short-time withstand 100 kA with 220 kA peak; vertical busbar 85 kA / 187 kA
- Polycarbonate LEXAN R500 busbar clamps with aluminium support
- Rated insulation voltage AC 660 V / 1000 V; protection IP30 or IP54
- Cabinet types: incoming (1200×2200×1000), feeder and control; 900 mm width
