Brand: Zhiting

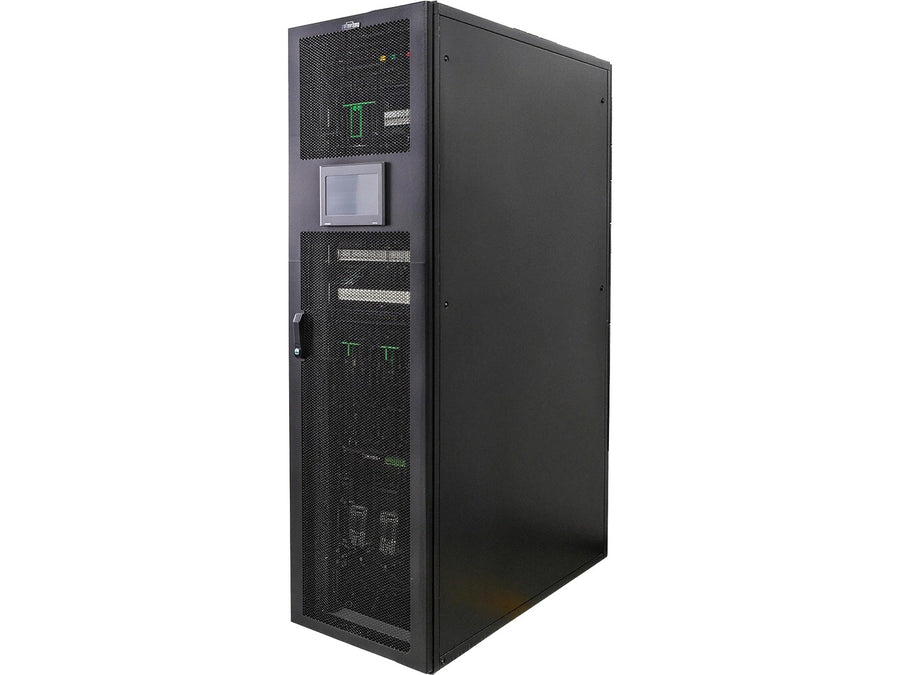

Zhiting ZT-SPDC Integrated UPS Distribution Panel (30–180 kVA)
RPPdistributionintegratedpanelpowerupszhiting
Project-based pricing — no public retail price.
Engineering quote in 24–48 h
Tell us the quantity, site power/cooling context and delivery country — our supplier desk returns a spec'd offer, not a generic price list.
Overview
ZT-SPDC combines the UPS input stage and IT power distribution in one UL 1741 / IEC 62040 certified cabinet for compact machine rooms.
- UPS capacity 30–180 kVA with single or dual input and built-in ATS (160 / 200 / 250 / 400 A)
- IT power distribution: 32A/1P × 24 × 2 ways
- AC and lighting distribution: 32A/3P×6 or 63A/3P×4, 40A/3P×2, 16A auxiliary ways
- Output power factor 1; overall efficiency 95.5%
- 7" or 10" touchscreen; protection rating IP40
